Moisture in Compressed Air Explained
Air Hose or Garden Hose? What’s Up With All That Water?

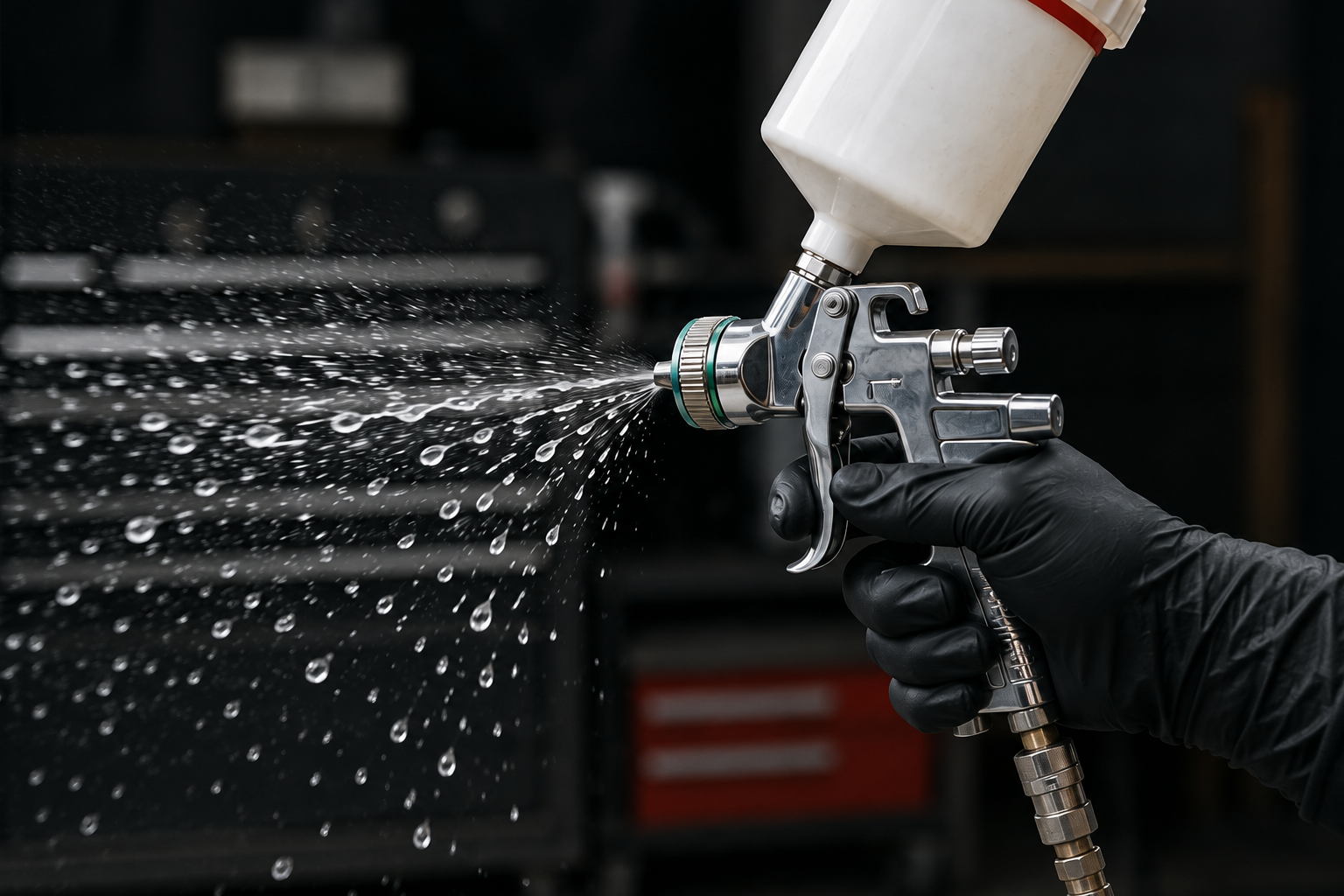

Water dripping from an air fitting. A spray gun suddenly spitting moisture. Tiny droplets ruining an otherwise perfect paint job. If you’ve experienced any of these, you’ve probably wondered where all that water came from.
The answer begins long before the air reaches your compressor. The air around us always contains invisible water vapor. Your compressor simply pulls that air in, compresses it, heats it, and sends it through your air system. As the air cools, some of that vapor condenses into liquid water.
Once you understand what happens inside the compressor and air tank, moisture in compressed air starts to make a lot more sense. We’ll follow the air from the compressor intake through the tank, explain why climate matters, and show how the air tank, cooling, separators, and dryers each play a role in controlling moisture.
In this article you’ll learn:
✓ What causes moisture in compressed air.
✓ How it gets removed.
A 60-Gallon Tank Holds About 600 Gallons of Outside Air
When a 60-gallon compressor tank reaches 125 PSI, the air inside has been compressed to about one-tenth of its original volume.
In other words, that tank now contains roughly the same amount of air that would occupy 600 gallons at normal atmospheric pressure.
How Much Moisture Is in 600 Gallons of Air?
Every gallon of outside air contains some water vapor.
How much depends on your local climate.
Let’s compare two examples.
Where you live has a major impact on your compressed air system.
The air entering your compressor may contain three or more times as much moisture simply because of your local climate. That means the amount of moisture your cooling, separation, and drying system must handle can vary dramatically from one location to another.
Your Compressor in Action
The Physics—and a Little Magic—of Compressed Air
In just a few milliseconds, ordinary ambient air can be heated from room temperature to roughly 175°F–220°F simply by being squeezed into a much smaller space.
Compression adds energy to the air molecules, making them move faster and increasing the temperature.
This sudden burst of heat sets up everything that happens next. The hot compressed air can continue carrying its moisture as invisible water vapor. Then, as the air moves through the tank, piping, and filters and begins to cool, some of that vapor can condense into liquid water—where it can finally be separated and removed.
That heating-and-cooling cycle is the key to moisture control in a compressed-air system.
More Cool Physics at Work
Compression does more than heat the air—it also raises its
pressure dew point,
the temperature at which water vapor begins condensing while the air remains under pressure.
At around 125 psi, the pressure dew point can rise well above 100°F and, with moisture-laden incoming air, may be around 140°F or higher. Because the compressed air is still hotter than that when it leaves the pump, its moisture remains suspended as invisible water vapor.
Then the hot, pressurized air enters a steel tank whose walls may be only 70°F–80°F. The walls are far below the air’s pressure dew point, so the air cools rapidly and releases a substantial amount of moisture as liquid water.
Not all of the moisture condenses in the tank—but a significant portion can. That is why the tank is the first major cooling surface and the first stage of moisture separation.
Draining the Tank
Draining your compressor tank is one of the simplest—and most important—maintenance tasks. Every time compressed air cools inside the tank, some of its water vapor condenses into liquid water that collects at the bottom.
Why Drain the Tank?
- Reduces internal tank corrosion.
- Maintains the tank’s full air storage capacity.
- Preserves the tank’s ability to cool the compressed air and remove moisture.
Good News
Once water has condensed and settled in the bottom of the tank, it remains there as liquid under normal operating conditions until you drain it. It does not travel back into your air lines as moisture. In other words, every ounce of water drained from the tank is an ounce your filters and paint system never have to deal with.
Bottom line: The air tank is more than a storage vessel—it’s the first moisture separator in your compressed air system. Keeping it drained helps it continue doing that job efficiently.
Hot Air Leaves the Compressor
Ambient air is compressed and rapidly heated. At this point, the moisture it contains remains suspended as invisible water vapor.
Cooling Begins in the Tank
Hot compressed air contacts the cooler steel tank walls. As the air cools below its pressure dew point, some water vapor condenses into liquid water and collects in the bottom of the tank.
More Condensation Forms
Air continues cooling as it travels through the piping and other system components. Additional water vapor reaches its dew point and becomes liquid droplets that separators and filters can remove.
Moisture-Removal Equipment
Separators and coalescing filters remove condensed liquid water. Dryers can also remove water vapor when the application requires air that is drier than cooling and filtration alone can provide.
Final Cooling at the Tool
Compressed air continues cooling as it flows through the tank, piping, filters, regulators, hose, and other components. Heat transfers from the hot air into the cooler equipment and then into the surrounding atmosphere.
The air also cools as its pressure is reduced and it expands through regulators, valves, fittings, and the spray gun. This additional temperature drop is commonly called expansion cooling.
If enough water vapor remains, these combined cooling effects can lower the air below its pressure dew point and allow liquid droplets to form close to the tool.
The amount of liquid water formed depends on two things: how much water vapor remains in the compressed air and how much the air cools before it reaches the tool.
So… What Moisture Removal System Do You Need?
Enough water vapor must be removed from the compressed air so that
liquid water droplets never reach your paint gun—or any other air tool.
By now, you’ve seen that moisture problems aren’t caused by the compressor alone.
They depend on:
- How much moisture enters the compressor.
- How much is removed in the tank.
- How much condensation occurs before the air reaches your tool.
That’s why the right moisture removal system is different for every shop.
A hobbyist painting a motorcycle tank in Arizona doesn’t need the same system as someone spraying complete vehicles every weekend in Florida.
The goal is to choose a system that matches your climate, your compressor, and the kind of work you actually do.
In the next article, we’ll explain how moisture is removed from compressed air, the equipment commonly used, and how to determine what type of system best fits your climate and the work you do. We’ll also look at a few example system designs to help you choose the right approach for your shop.
